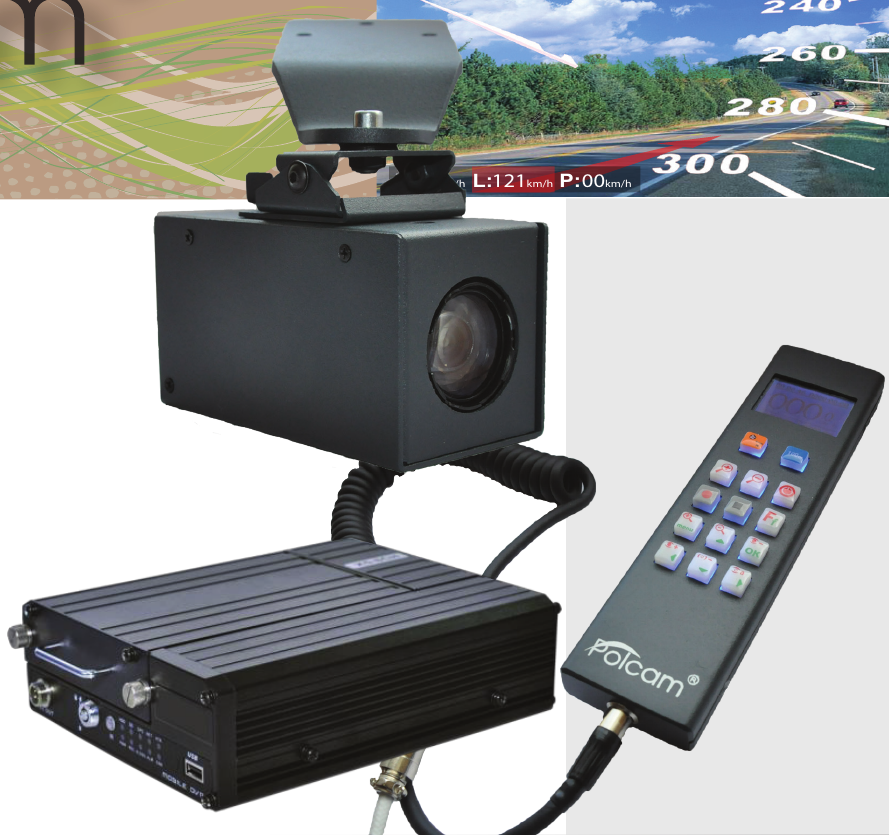

PolCam ECII

PolCam EC-II is an In-Car Video System that monitors speed and behaviour of the drivers on the road.It utilizes Doppler Radar and/or time and distance calculations. EC-II is very advanced system designed to work with HD audio and video systems. The performance of the unit is stunning. Thanks to high-grade CPU, embedded operating system and H264 codec usageit is able to record even 720p, WD2, D1, HD1, CIF and D1 videos. All this while supplying relevant metadata. Additionally, it has the ability to wirelessly upload video material.

The modular architecture of the system makes it independent of vehicle type. It can be pre-cutomized for selected vehicle types, but also fine-tuned according to specific user requirements. Its modular design, flexible installation, easy maintenance and high reliability makes it a perfect device for law enforcement,

Furthermore, because of the design, vehicle specific limitations can be easily bypassed. The unit is built ready for optional modules installment as well as the future modernization, even one we haven’t even invented yet!

Video Recording Unit

  • H.264 Video Compression – encryption including metadata
  • Resolution D1 25 kl/s, architecture ready for full HD
  • Removable storage media
    • SSD or HDD
    • 2 – 4 hours per 1 GB
  • Data export to USB
  • Search by Alarm and time, GPS location
  • TPost and Pre-Alarm (ability to record only Alarms)
  • Compact designs

Indicating devices

  • Standard 7’’ Monitor with native resolution 800×480
  • Optional 10’’ Monitor with native resolution 1024×768
  • Optional touchscreen
  • Brightness 500 cd/m2 (optional LED 1000 cd/m2)
  • LCD on remote control

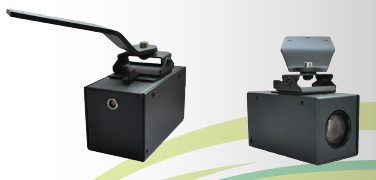

Cameras

  • Easy angle setting
  • Quick camera detach
  • 18,28,36 x Optical Zoom
  • Progressive Scan 550 TVL
  • Optical Image Stabilizer
  • IR Filter and WDR
  • 0,65 lux (F1.35, 50 IRE)

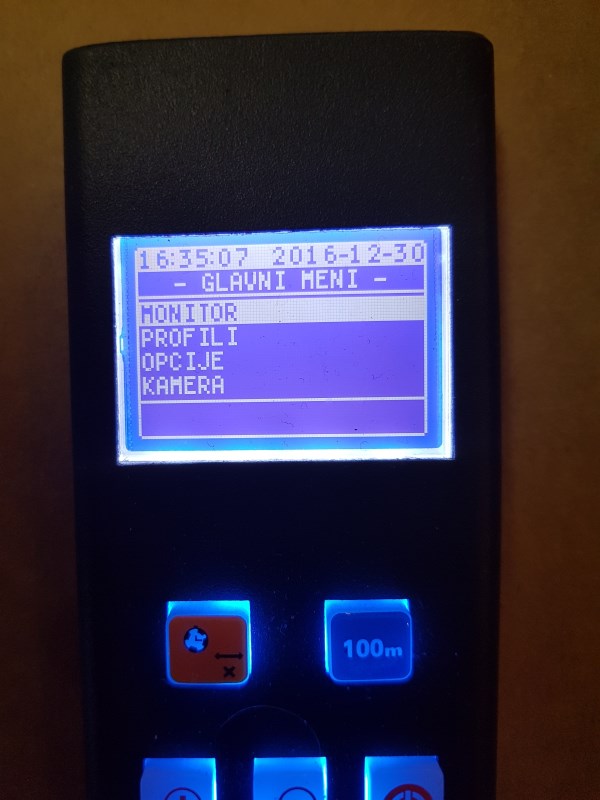

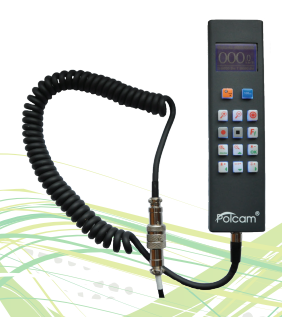

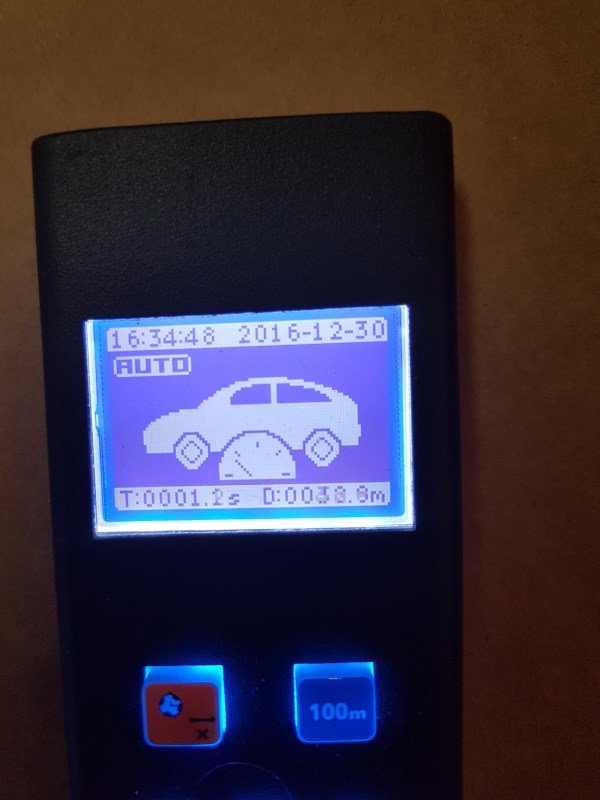

DeviceControl

  • Remote with Integrated LCD
  • Back light illumination

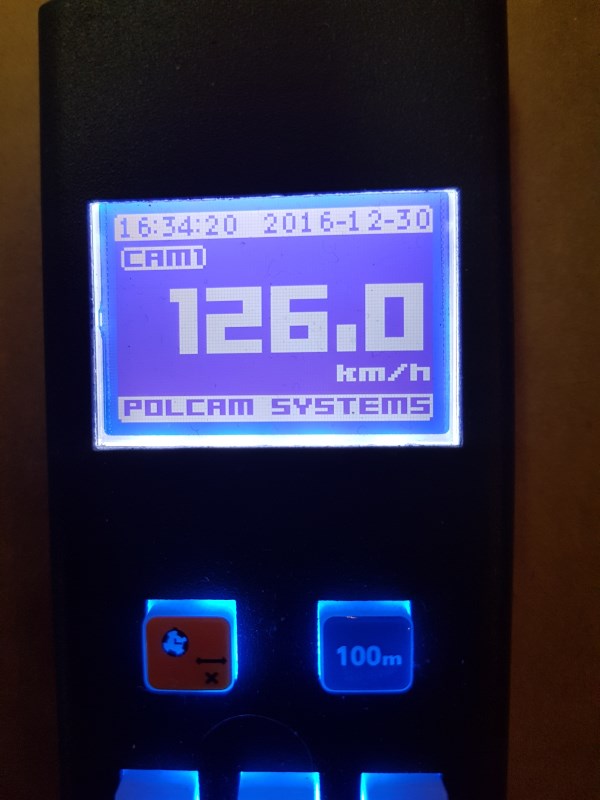

  • Speed and status indication
  • System menu
  • Optimum number of remote functions

Type Approval:

list of countries and norms.

SAMPLE EVIDENCE FILES

SPECYFICATION

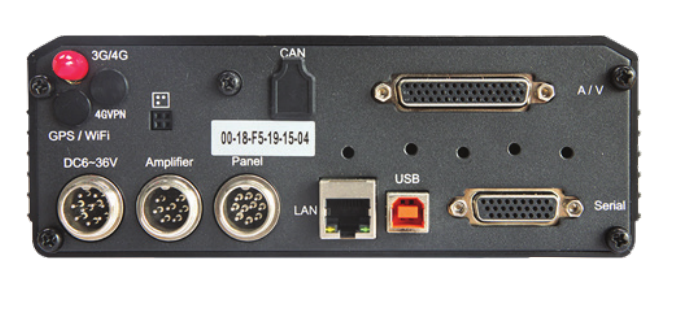

PolCam EC-MU – Main Unit
Dimensions
Weight
Power supply
Power consumption (basic set)
Storage temperature
Working temperatures
Measurement units
Speed measurement accuracy
Nominal Power supply 13V DC (10,4V – 15,6V)
Communication 2 x RS232
Nominal Power supply 2 x Analog PAL input + 2 x RS232

System compliance certification:

  • Mil-Std 810F (PolCam EC-MU, EC-PmRS-V1, EC-HDD)
  • 2004/104/WE from 14.10.2004, 72/245/EWG, 70/156/EWG.
  • 10 EKG/ONZ
  • Dz.U.RP nr.225 – 03.12.2007 – poz.1663
